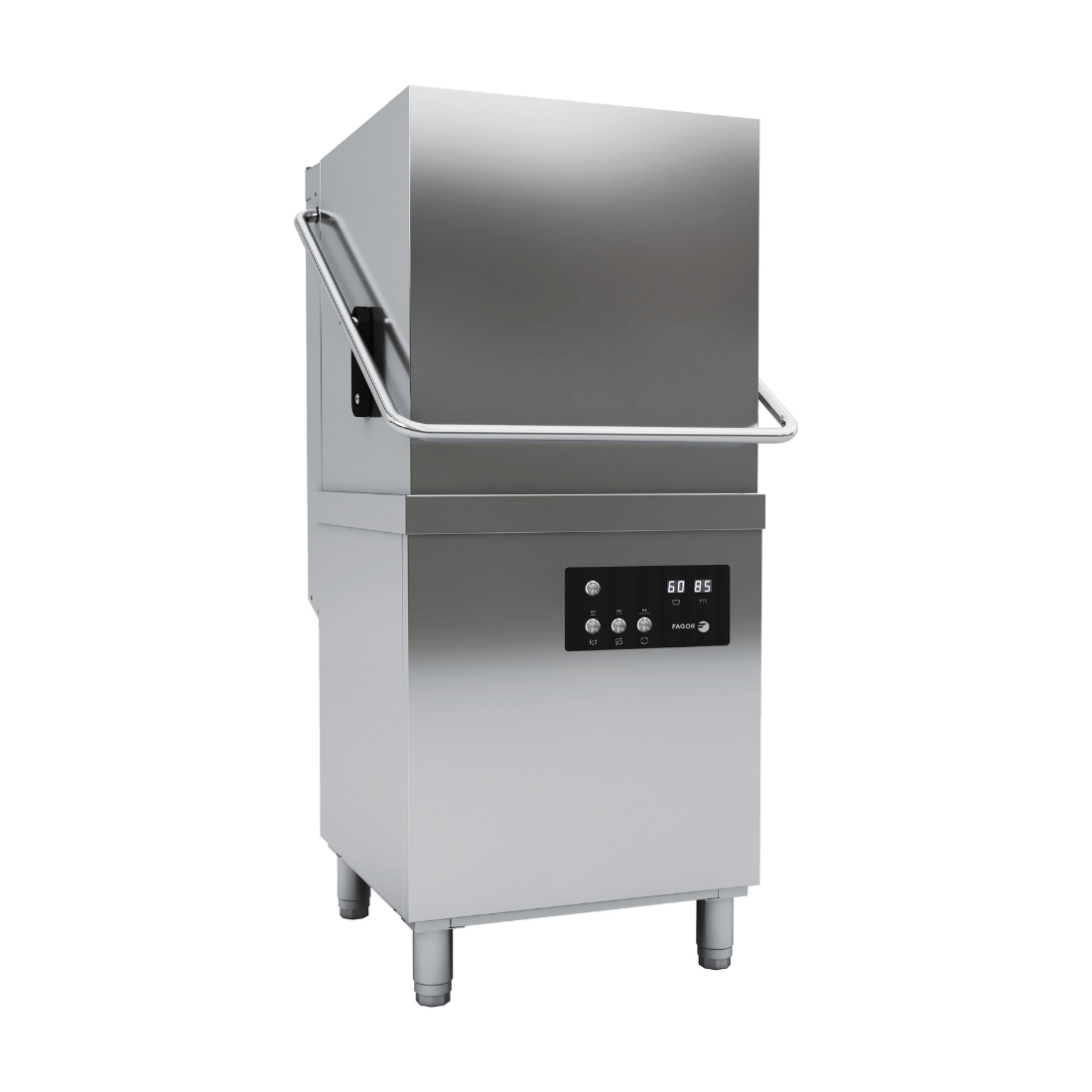

Fagor iNova Concept Pass-Through Dishwasher – WHC-502TBD
iNova Concept high-performance hood-type pass-through dishwasher designed for fast, efficient commercial kitchens. Suitable for a 500×500 basket with mains pressure, LED displays, drain pump and detergent dispenser.
Key Features
- Hourly production: 40 baskets/hour
- Clearance (max ware height): 450mm
- Electro-Mechanical Controls with Robust Back-Lit Pushbuttons
- Wash cycles: 55”/75”/120
- Stainless steel construction
- Duo-KLIP Wash/rinse arms
- Wash pump, 750W each
- Drain pump: 100W drainage cycle
- Wash Tank with 3 kW heating power
- Tank capacity: 33 litres
- Boiler heating power: 6 kW
- Boiler capacity: 9 litres
- Water consumption: 2.2 litres/cycle
- Thermostatic temperature control: washing at 60 ℃ and rinsing at 85 ℃
- Two-digit LED displays
- Hydraulic rinse aid dispenser
- Dual-flow wash pump with soft-start
- Double-stage filtration system
- Dual-flow wash pumps
- Volumetric rinse
- A magnetic micro switch to stop the cycle in case of accidental opening of the hood.
- Adjustable legs
- Supplied with 1 glass basket, 1 plate basket, and 1 cutlery container
- Watermark approved
- Temperature control by electronic probes
- i-ERROR DIAGNOSIS: Error identification on screen
- Drain pump
- Hydraulic rinse aid dispenser and Peristaltic detergent dispenser
2 Years Parts and Labour Warranty
