Description

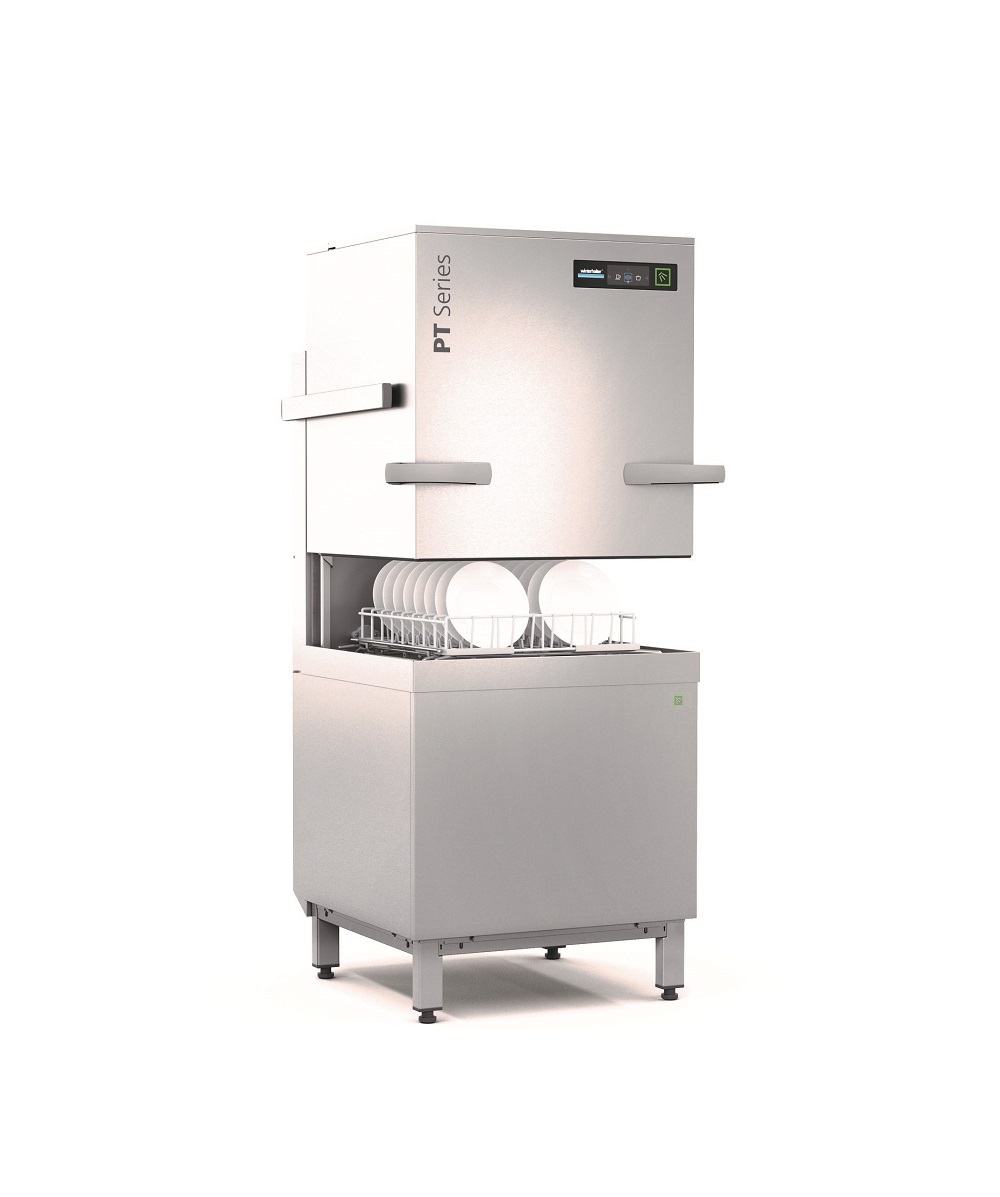

Wide body pass through dish & utensil warewasher, with integrated air exhaust heat recovery & waste water recovery, driven rinse system, touchscreen control, double skinned hood, elliptecal quick release wash fields, varipower wash pressure adjustment, full flow filtration, clouding sensor, mediamat filtration. Certified no external ventilation required, Active energy management reduces the heating time by up to 50% and program time.
- 500×600 Basket Size
- 6 wash programs
- Output 60 racks/hr
- Power type 15.7kw 3phase
- Supplied with Drain pump, chemical pumps and rinse booster pump
- Supplied with 500×600 stainless steel rack, and plastic rack for trays.
- Cavity Height clearance 440mm
- 25-30� Cold water connection
- Multiphase
- 2 years parts & labour
- Dimensions 1995(H) x 735 (W) x 750 (D)mm
Specifications
- Basket Dimensions (wxd): 500×600
- Colour: stainless steel s
- Construction Material: Stainless steel
- Timer Range (mins/secs): 50-164secs
- Product Output: 60racks/hr
- Controller: Touchscreen
- Drainage: Pumped
- Voltage: 415
- Power Wattage: 15.7kw
- Plug Supplied: No
- Hardwired: yes
- Single/Three Phase: 3 phase standard, optional single phase
- Frequency (Hz): 50Hz
- Current (Amps): 32amp
- wash tank Temperature: 55�
- Rinse tank Temperature: 85�
- Heat Up Time (mins): 30minutes
- Certification (CE Marked) & Watermark Approval: Yes
- Accessory: 600×500 stainless steel rack & 500x 500 open end plastic open rack
- Box Qty: 2
- AUS Warranty: 2 years
- country of origin: Germany
